Indicate the current network connectivity status, to either the local router or the public internet, with an LED.
VIDEO
The video here demonstrates the project which this article describes how to build.
The article breaks the project down into several stages:
Hardware
Software
Install
Hardware

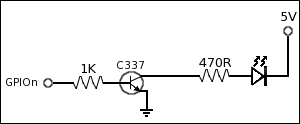

The hardware is simply lighting an LED via a transistor.
LED Status Indicator
Software
The software is a single shell script. The script uses GPIO pin 14 to drive an LED to indicate the network connectivity status. If you want to change to an alternate GPIO pin, all instances of the number 14 must be replaced in the script where they refer to the GPIO, to the alternate GPIO number.
The script performs a simple ping of the specified network address, if the ping fails, the LED indicator is switched off and a re-connection to the network is tried. If the ping succeeds, the LED indicator is switched on.
The script has a line: sleep 15
Which checks the network for connectivity every 15 seconds, this value can be changed to check more or less frequently.
Install
The script can be run at boot by adding the following cron entry, replace [IP_ADDRESS] with the IP address of your router or a public web site URL:
sudo cp RPiNetUpLED.sh /root/
sudo crontab -e
@reboot ./RPiNetUpLED.sh [IP_ADDRESS]
Tested Raspberry Pi (Original)
Raspberry Pi 2
Raspberry Pi 3
GIT Source Code RepositoryV1.00 2016-09-12 - Raspberry Pi Network Status Indicator.
